8" RPA-6 Automatic Multi Spindle Lathes
We have in stock National Acme 8" RPA-6 automatic screw machines for sale, and can rebuild, retool, and/or retrofit any of our used Acme Gridley screw machines to specifically meet your needs. JEM Automatics guarantees the performance of all Acme Gridley screw machines we rebuild. Optionally, turnkey setup services can be provided, where we would supply the machine fully tooled and already proven to produce your part automatically and within tolerance before it is delivered to your plant.
The Acme Gridley 8" RPA6 screw machine is an 8 spindle automatic lathe hydraulic chucker machine. Standard multispindle chucking machine specifications and capacities shown are for reference only, as a custom retrofit by JEM may improve upon or modify these specifications. Many of the National Acme standard equipment options and attachments available to configure an Acme Gridley 8" RPA6 screw machine are listed here. Please use our quick RFQ form below and we will review your specific requirements and follow up with a machinery quotation and/or recommendation for your consideration.
Acme Gridley 8" RPA-6 Screw Machine Equipment and Attachments
(equipped based on your tooling setup)
Base Component Options:
- Lower Cross Slides - 2nd & 3rd position
- Upper Cross Slides - 5th & 6th position
- Intermediate Cross Slide - 4th Position Shelf Slide
- End Tool Slide Drill Holders
- Specify - 1st, 2nd, 3rd, 4th, 5th or 6th position
- One Set of Cams and Gears as mounted
- One Set of National Acme style Splash Guards
- Optional JEM Custom Designed High Quality Guarding
- Chip Conveyor
- Coolant Pump
- Hydraulic System
- Main Drive Motor and Associated Push Button Controls
- Specify Line Voltage - 240 or 480 VAC 3-phase standard
Available 8" RPA-6 Attachment Options:
- Threading / Tapping Attachment in 5th or 6th Position
- Air Trip Universal Threading Attachment, or Plain Threading Attachment
- Optional Upgrade to JEM Linear Sensor 0.001" Tapping Control
- Accelerated Reaming Attachment in 5th or 6th Position
- High Speed Drilling Attachment
Other Possible Upgrades & Screw Machine Retrofits:
- Water Soluble Coolant & Spindle Carrier Seal Retrofit
- TechControl Electrical Upgrade Package for Mechanical Machines
- TechDrive Servo Machine Conversion with FANUC CNC Controls
- Single Axis Servo Cross Slides
- Compound 2-Axis CNC Slides
- Automatic Grease or Lube System for Maintenance Points

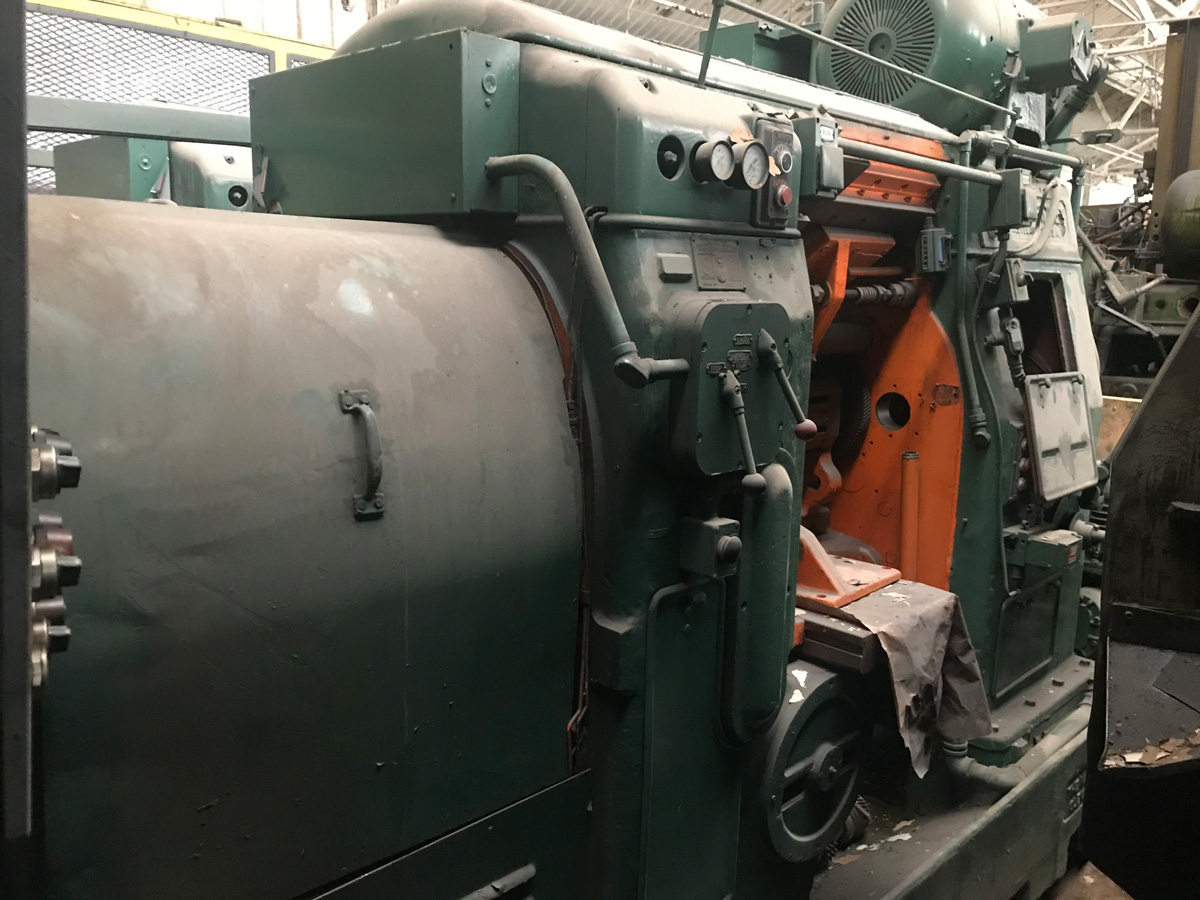

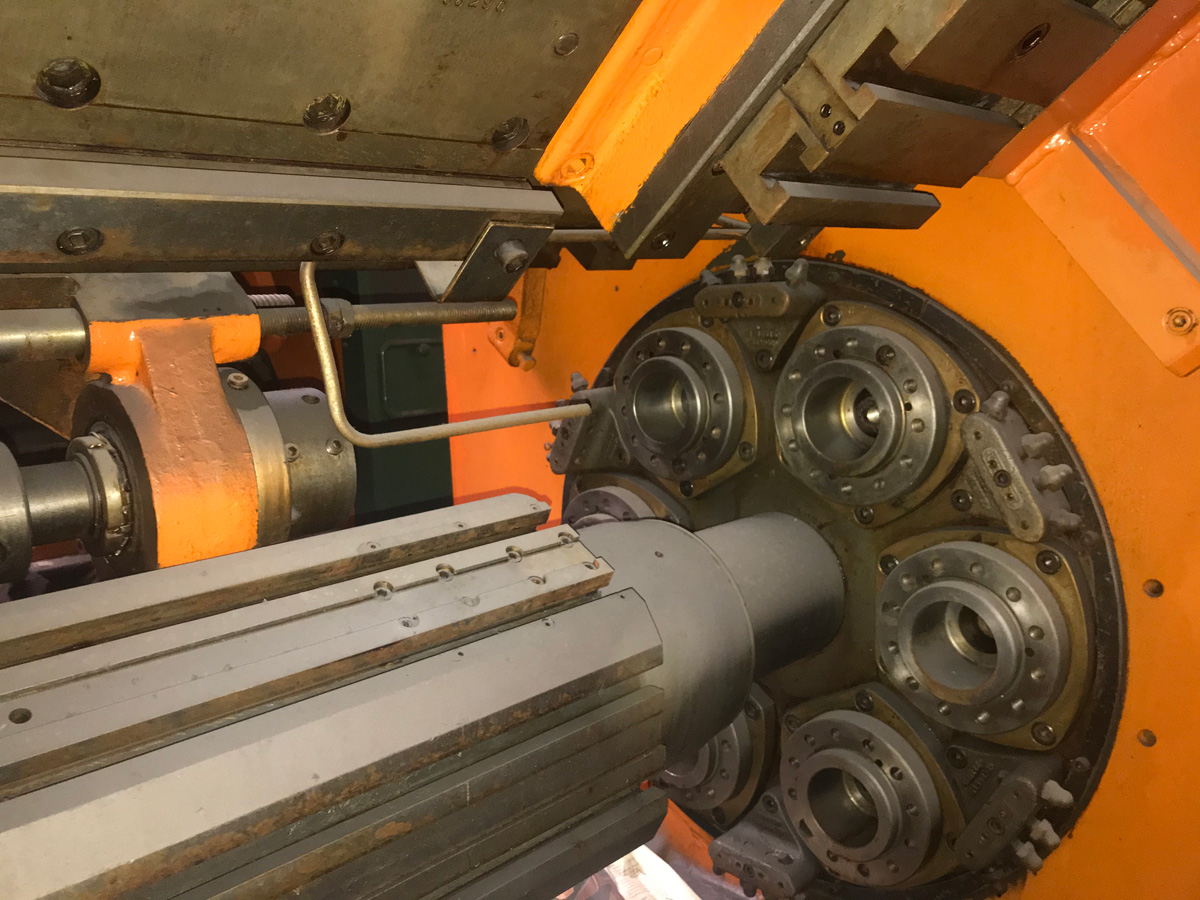

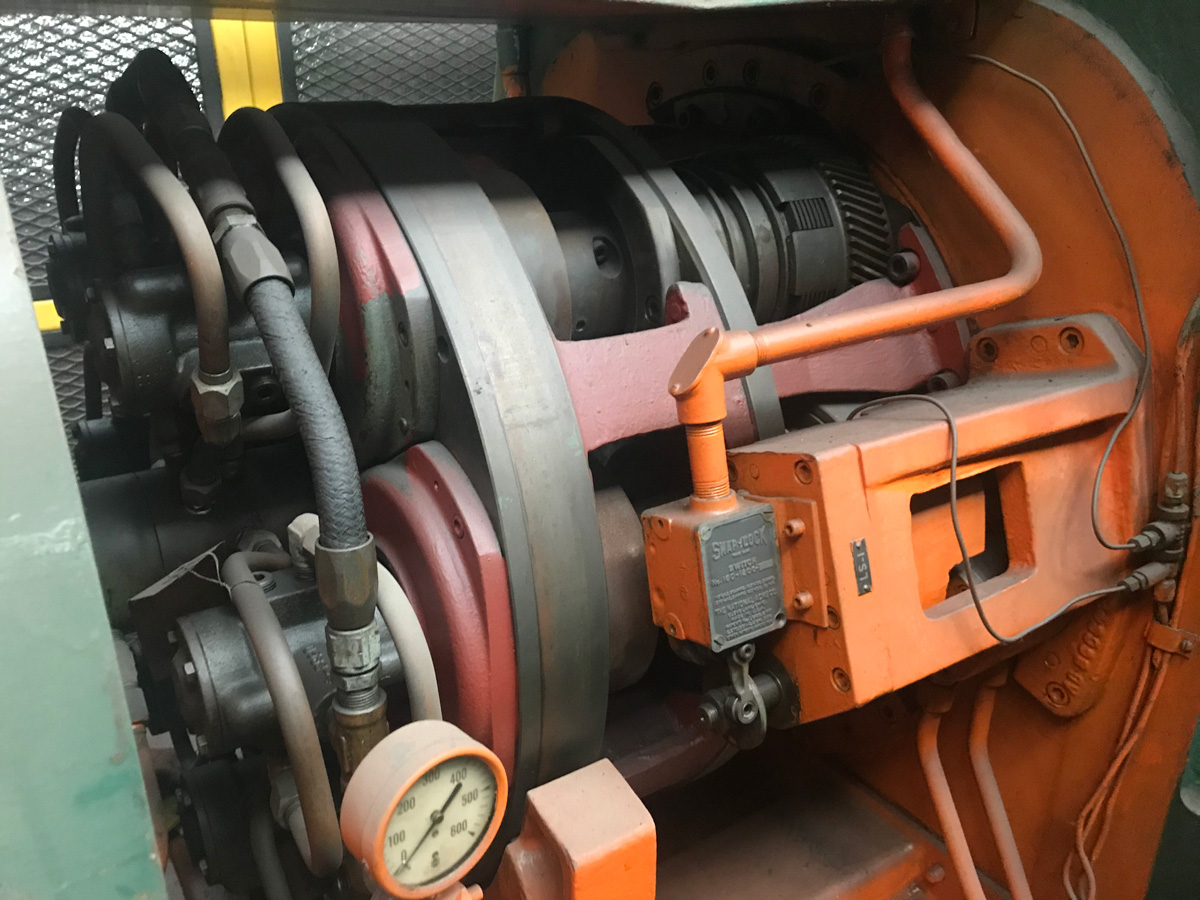

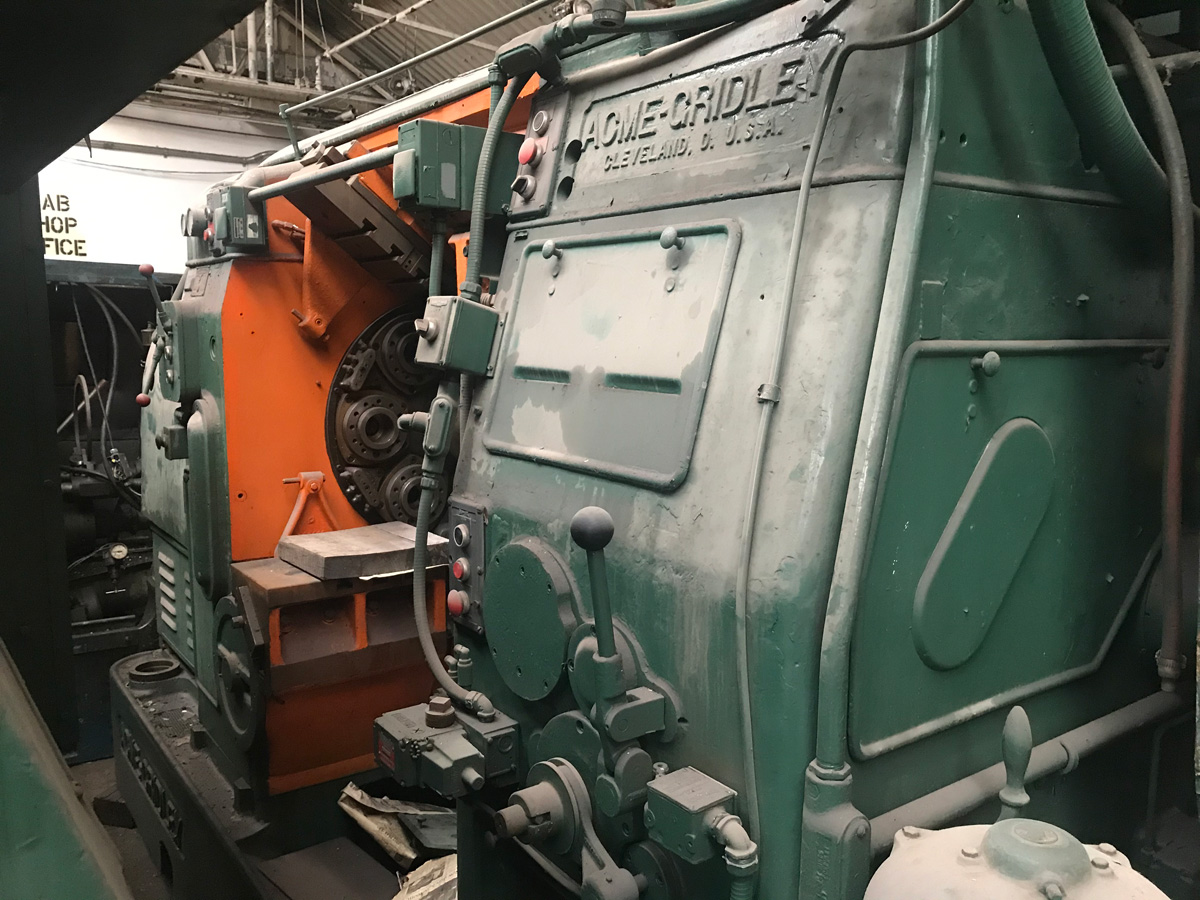

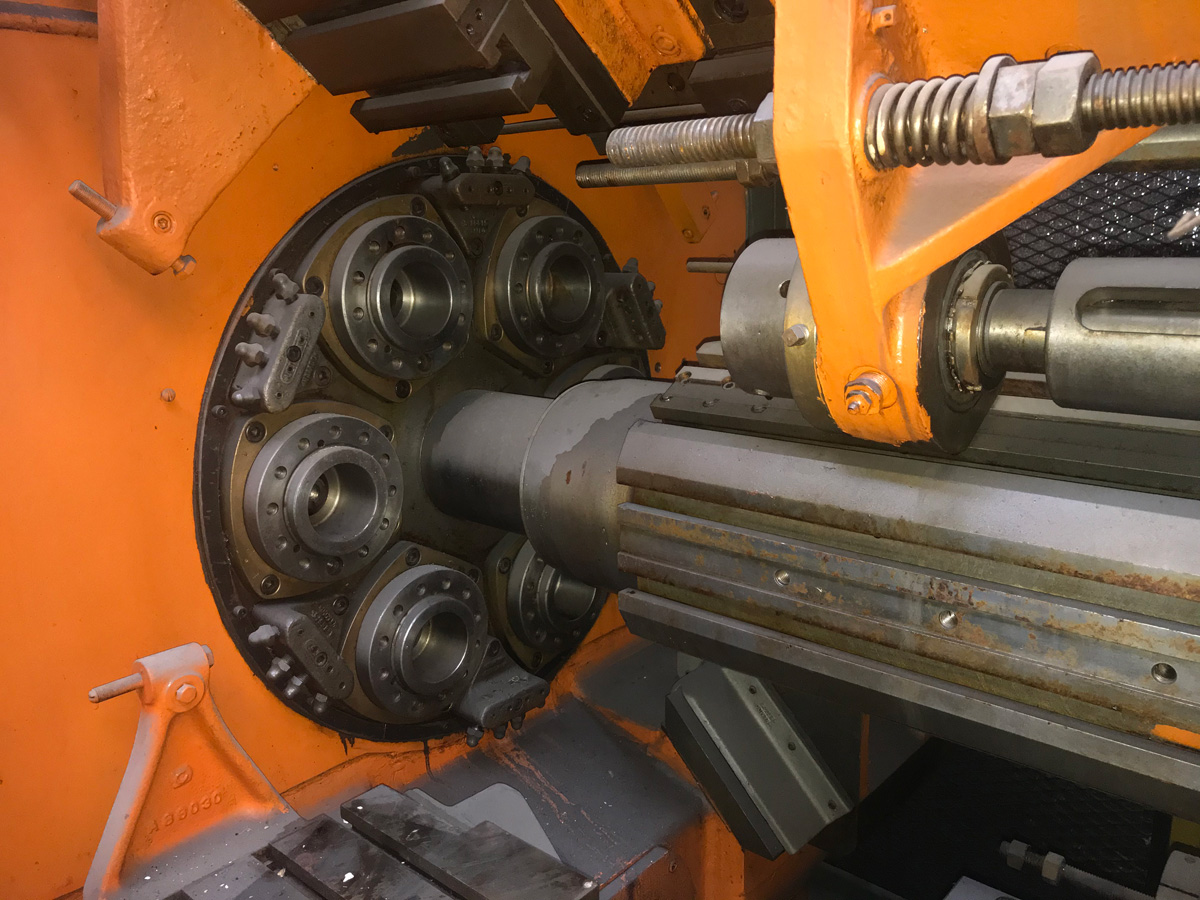

Sample pictures of used Acme Gridley 8" RPA-6 screw machines in stock for rebuild or retrofit:
